Introduction:

Our latest PM fiber fusion splicer supports cladding diameters from 80 μm to 150 μm and comes with a universal fiber holder. It can also serve as a high-performance standard single-fiber splicer, offering great flexibility for various applications.

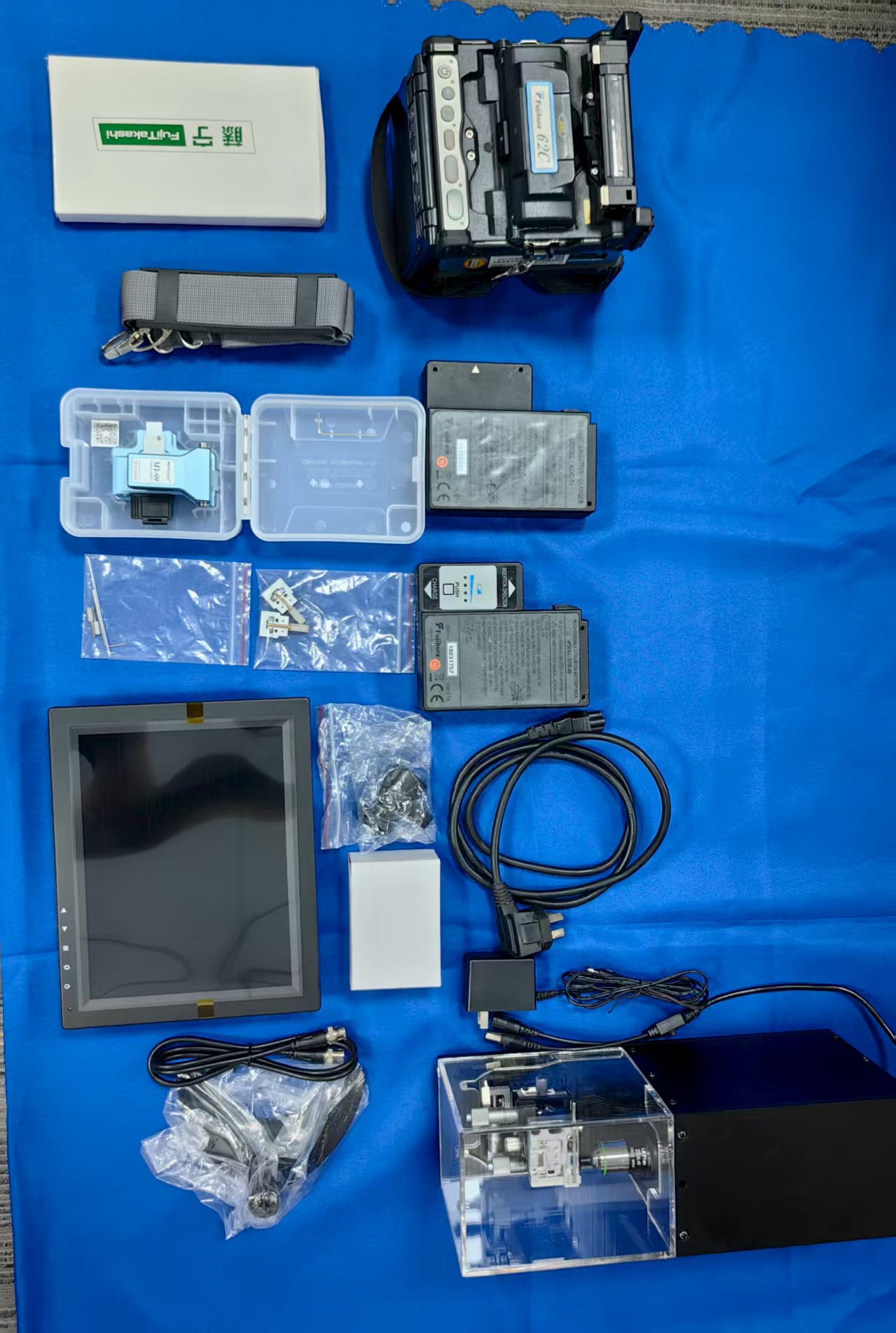

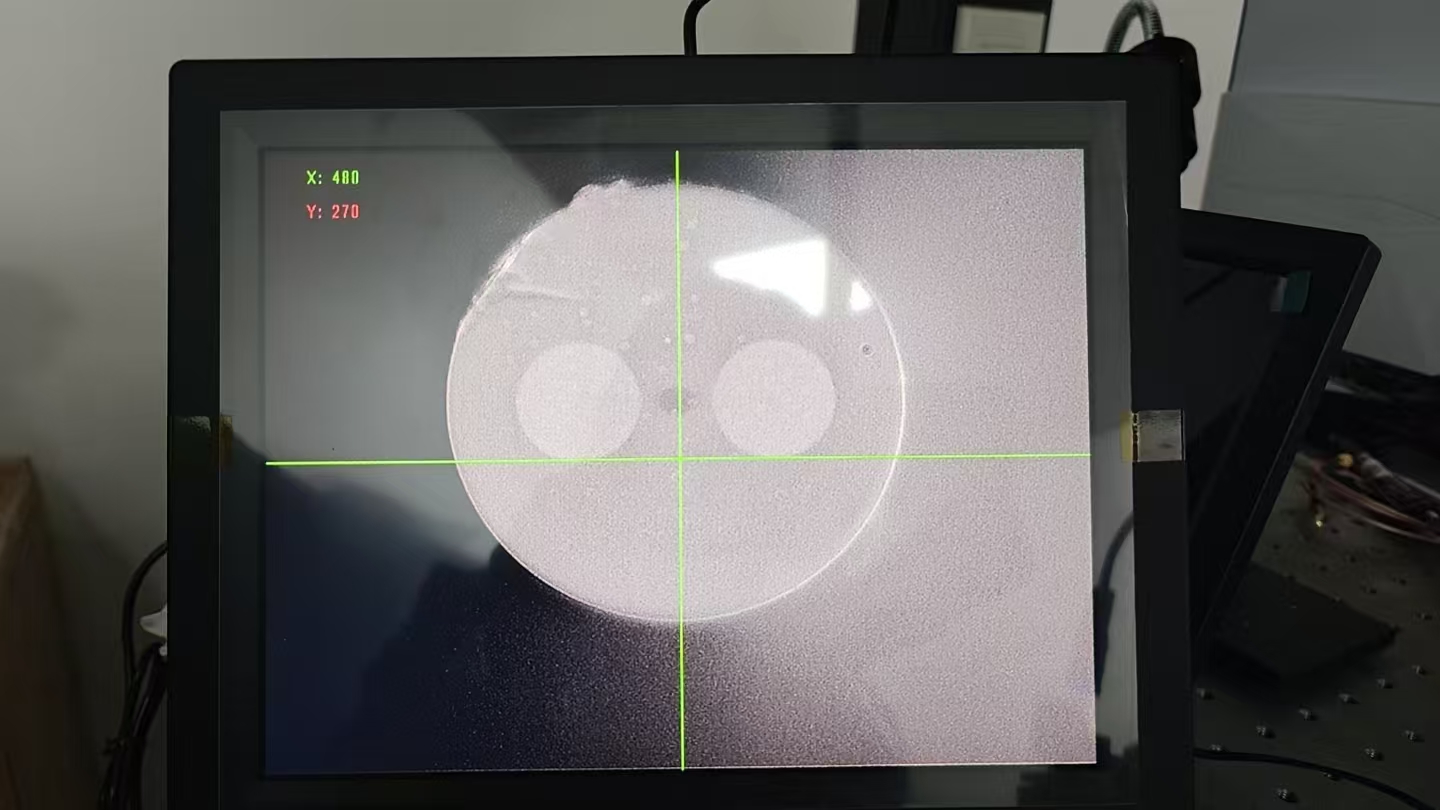

The system adopts a fiber end-face imaging and manual rotational alignment method for precise axis matching before fusion. It features a high-resolution, high-magnification (400×) optical imaging system, paired with a native CCD-based X-Y coordinate display and a 12-inch HD monitor, enabling crystal-clear end-face imaging. This setup makes it easy to achieve a polarization extinction ratio (PER) exceeding 25 dB.

In addition to PM fibers, the splicer supports other specialty fibers requiring angular alignment, such as active/passive double-cladding fibers and multicore fibers—as long as the cladding diameter falls within the supported range of the machine.

Key Features:

1. High resolution endface imaging: The imaging multiple is up to 400 times to ensure a clearly visible optical fiber endface and achieve high precision shaft operation.

2. High performance fusion splicing platform: 6-motor high quality single mode fusion splicer, which has excellent imaging quality and fusion splicing consistency, low loss and high long term reliability.

3. Wide fiber compatibility: Compatible with various types of special optical fibers, including polarization-maintaining fibers, multi-core fibers, photonic crystal fibers, double-clad fibers, etc., to meet diverse application needs.

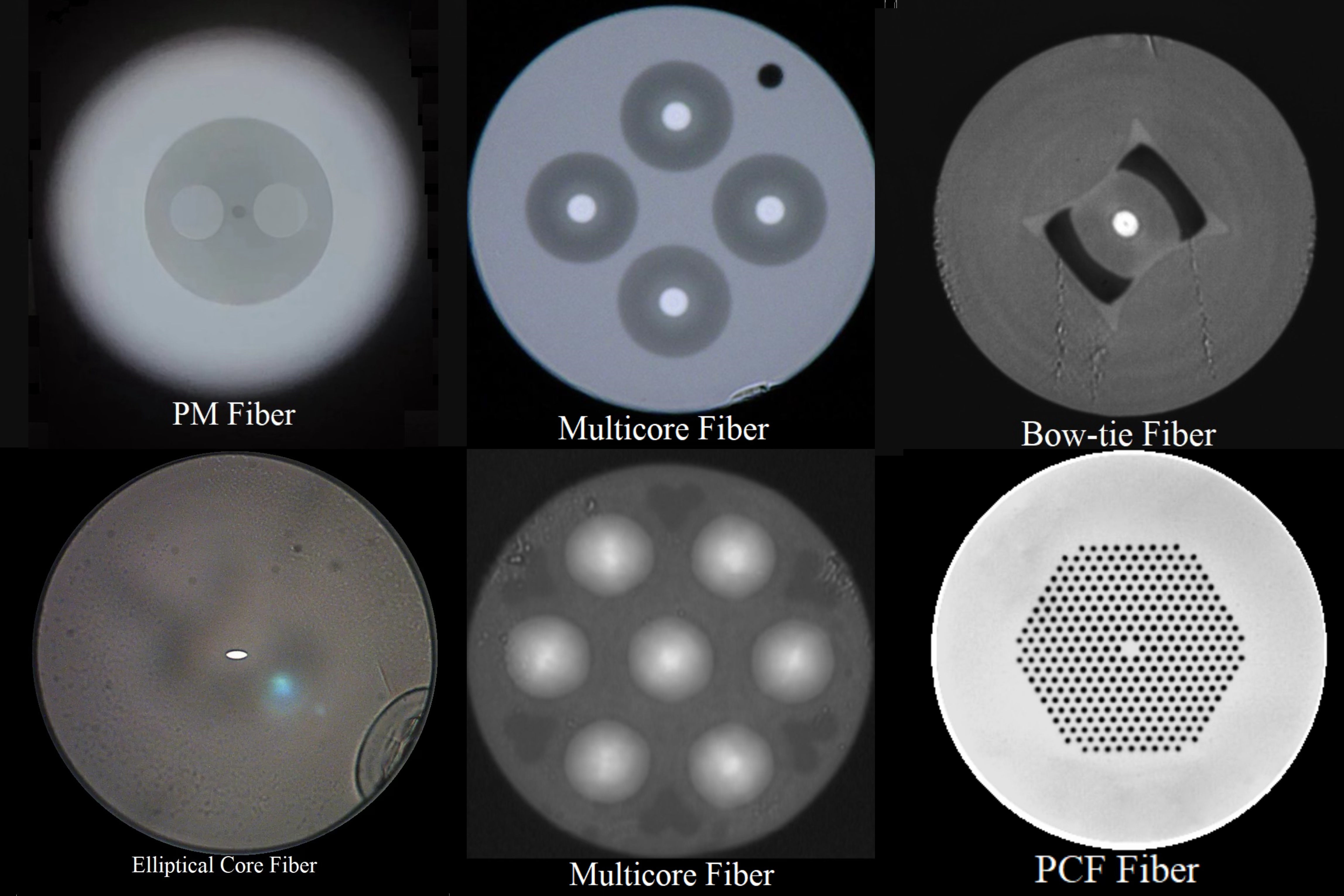

Fiber Type Endface Display:
